Electrical Probing Station

Electrical Probing Station Instrument Type Support Tools, Metrology, Device Processing, Techniques Electrical Probing Staff Manager Bert Mendoza Staff Email bertm@caltech.edu Staff Phone 626-395-4075 Reserve time on FBS Request training via FBS User Dashboard Lab Location B213 Steele Lab Phone 626-395-1537 Manufacturer Cascade Microtech Model M150

Description

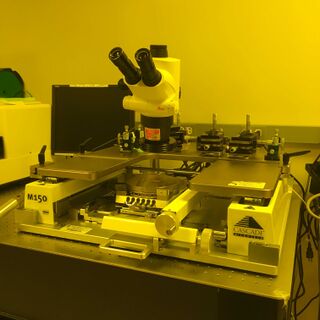

A manual probe station used for electrical testing of devices. Six probes are available; users are expected to supply their own probe tips. An HP4145B Parameter Analyzer is available and/or users are encouraged to bring in their own electrical equipment to use with the station.

Applications

• Miscellaneous electrical measurements

Resources

Manufacturer Resources

• Cascade Microtech MPS150 Probe Station – Data Sheet (newer model than the one in KNI)
• HP4145B Parameter Analyzer – Manufacturer Manual

Specifications

Hardware Specifications

• Cascade Microtech MPS150 Probe Station – Data Sheet (newer model than the one in KNI)
• Cascade Microtech MPS150 Probe Station – Product Highlights (newer model than the one in KNI)
